Capable

• Rated up to 50,000 PPH
• 1:2:2 jaw folder offers superior accuracy at high speed
• Easy changeover capability
• Web capacity up to fourteen webs, dependent on the specific application
• Collect feature available

Cutoff: 19" through 27.6" (483mm through 700mm)

Web Widths: 20" through 40" (508mm through 1016mm)

Experienced

• Many repeat purchases of the original H-50 due to high customer satisfaction
• Superb performance with all other brands of web presses, making the H-50 HD an excellent add-on to an existing press line
• Heavy-duty folder can be utilized with either 1-around or 2-around printing units

Versatile

• Unique self-adjusting jaw allows effortless conversion from single web to multiple web jobs

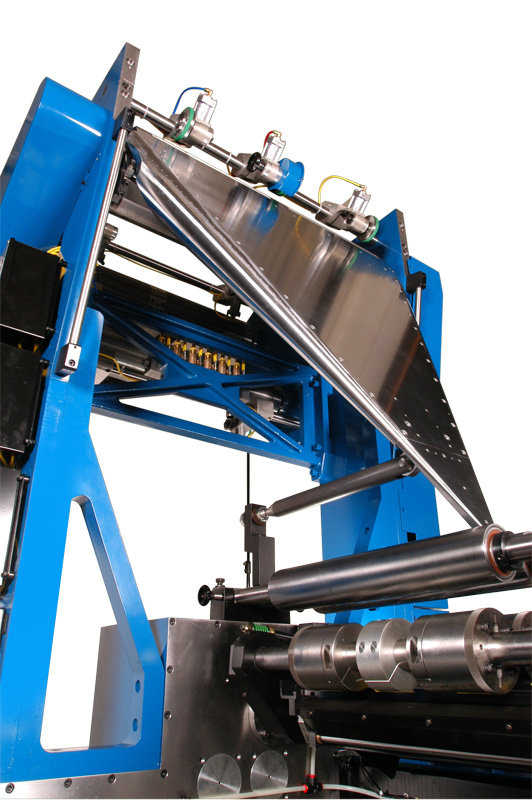

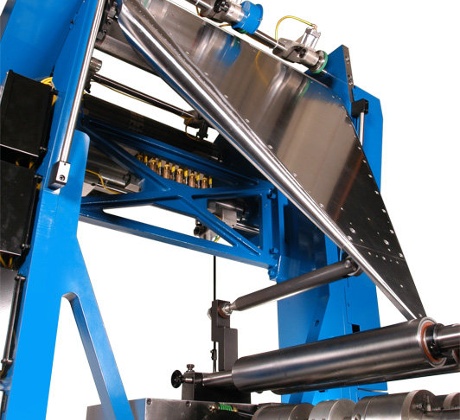

• True 64° conical design on the chrome-plated former board, with air
• Two driven sets of oversized nipping rings plus provisions for a crosshead perforator are standard
• Double parallel options allow greater product flexibility for specific market niches
• Integral ribbon shifters, crosshead, workbook and notch-type spine perforators available

Quarter-Fold Options

• Two quarter folder designs are available on the H-50 HD to accommodate both standard newspaper and demanding commercial heat-set folding applications
• The standard quarter folder boasts high page count capabilities. available in many cutoff options, it can be fully retrofitted to any existing H-50 or H-50 HD folder
• The enhanced quarter folder is specifically designed for high-speed commercial heat-set applications, catalog, directory, short-run books, and inserts
• A wide range of paper stocks, including the more difficult SCA and SCB lightweight stocks, are folded with advanced accuracy
