H-50 Jaw Folder

Recognized for its Outstanding Performance

H-50 Jaw Folder

The Tensor H-50 jaw folder is recognized for its outstanding performance and enduring quality.

Capable

  • Rated up to 50,000 pph
  • 1:2:2 jaw folder offers superior accuracy at high speed
  • Easy changeover capability
  • Web capacity up to twelve webs, dependent on specific application
  • Collect feature available

Cutoff: 19" through 27.6" (483mm through 700mm)

Web Widths: 20" through 40" (508mm through 1016mm)

Experienced

  • Many repeat purchases due to high customer satisfaction
  • Proven to perform well with all other brands of web presses, making the H-50 an excellent add-on to an existing press line
  • Heavy-duty folder can be utilized with either 1-around or 2-around printing units

Versatile

  • Unique self-adjusting jaw allows effortless conversion from single web to multiple web jobs

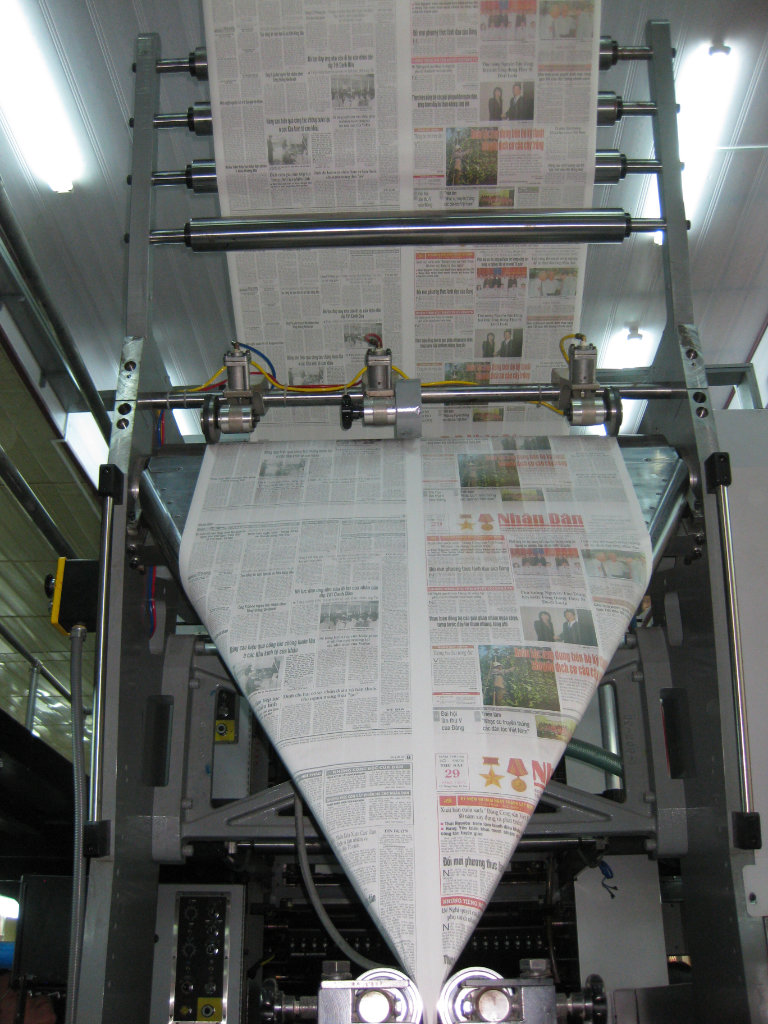

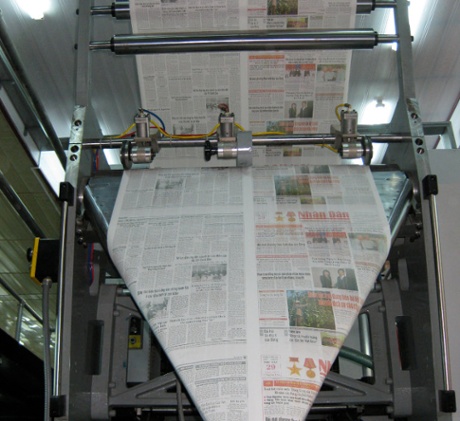

  • True conical design on the chrome-plated former board, pre-drilled for air

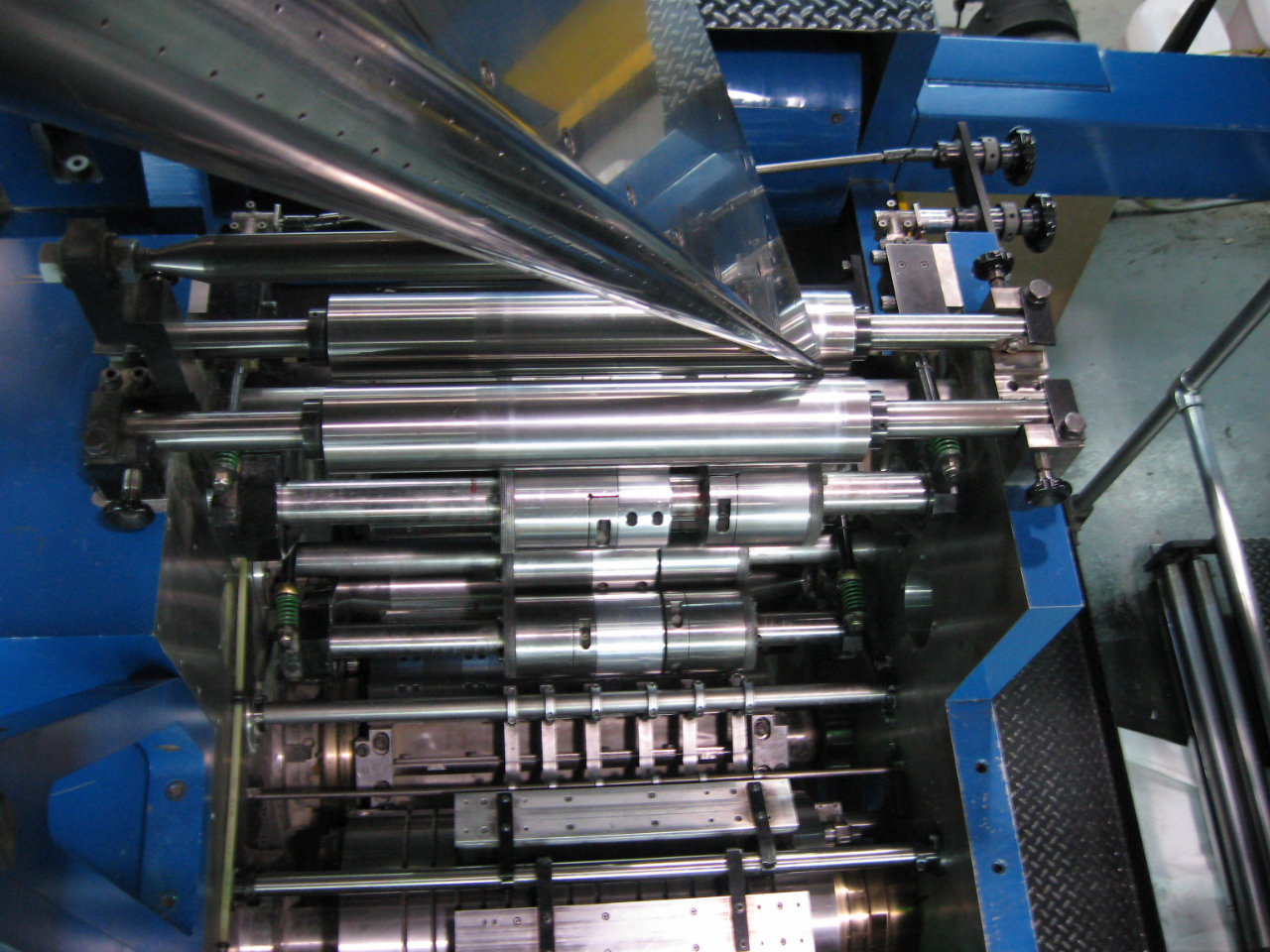

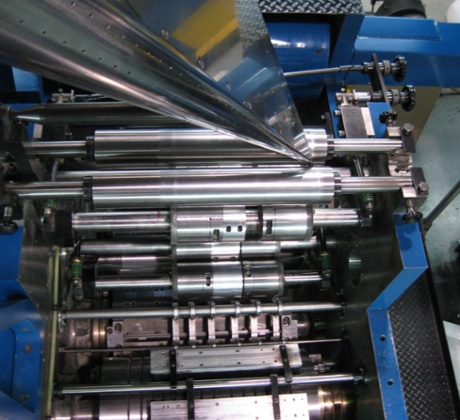

  • Two driven sets of nipping rings plus provisions for a crosshead perforator are standard
  • Double parallel options allow greater product flexibility for specific market niches
  • Integral ribbon shifters, crosshead, and notch-type spine perforators available

Quarter-Fold Options

  • Two quarter folder designs are available on the H-50 to accommodate both standard newspaper and demanding commercial heat-set folding applications
  • The standard quarter folder boasts high page count capabilities. Available in many cutoff options, it can be fully retrofitted to any existing H-50 folder
  • The enhanced quarter folder is specifically designed for high-speed commercial heat-set applications, catalog, directory, short-run books, and inserts
  • A wide range of paper stocks, including the more difficult SCA and SCB lightweight stocks, are folded with advanced accuracy
  • Kuwait
  • Vietnam
  • USA
  • Mexico

  • Kuwait

    Kuwait



  • Vietnam

    Vietnam

  • USA

    USA



  • Mexico

    Mexico




    Data Sheet(s)

H-50 English
English

H-50 Polish
Polish

H-50 Spanish
Spanish
