H-50 S

FULLY SHAFTLESS JAW FOLDER

H-50 S FULLY SHAFTLESS JAW FOLDER

SUBSTANTIAL DURABILITY, TESTED ACCURACY

Capable

  • Rated up to 50,000 PPH
  • 1:2:2 jaw folder offers superior accuracy at high speed
  • Easy changeover capability
  • Web capacity up to twelve webs, dependent on specific application
  • Collect feature available

Cutoffs: 19" through 27.6" (483mm through 700mm)

Web Widths:  20" through 40" (508mm through 1016mm)

Technical Specifications

1/2 FOLD:

  • 12 web capability*

1/4 FOLD:

  • 8 web capability*

FOLDER DIMENSIONS WITH 1/4 FOLD:

  • 106.75" H x 65.5" W x 115.75" L
  • 2711mm H x 1663mm W x 2940mm L

FOLDER WEIGHT:

  • 14,000 lbs. (approximate ship weight)
  • 6,350 kilos (approximate ship weight)

Versatile

  • Unique self-adjusting jaw allows effortless conversion from single web to multiple web jobs
  • Independent drive on the lower folding section
  • Independent drive on the RTF
  • Two sets of nipping rings with independent drive
  • Pneumatic controlled nipping rollers
  • Independent drive for the Quarter Folder
  • Independently driven delivery section for adjusting the shingle on the delivery stream
  • Simplified gearbox design
  • Touchscreen on the folder for folder settings, product configuration, and information

Standard Features

  • Rated up to 50,000 PPH
  • Half-fold product delivered folded edge first
  • Half-fold lap adjustments
  • Pneumatic, independently adjustable RTF trolleys and slitter
  • Former board is conical in shape, chrome plated and predrilled for air
  • Two (2) sets of independently driven nipping rollers always in contact with the web
  • Main folder drive gears are helical in design
  • Jaws are infinitely adjustable for light and heavy products— no shims are required
  • Laser jam detection

* Web capacity dependent upon certain variables and specific applications

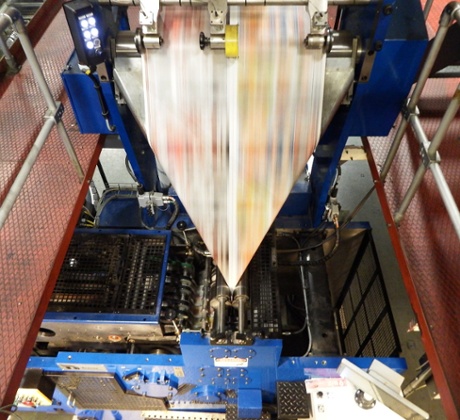

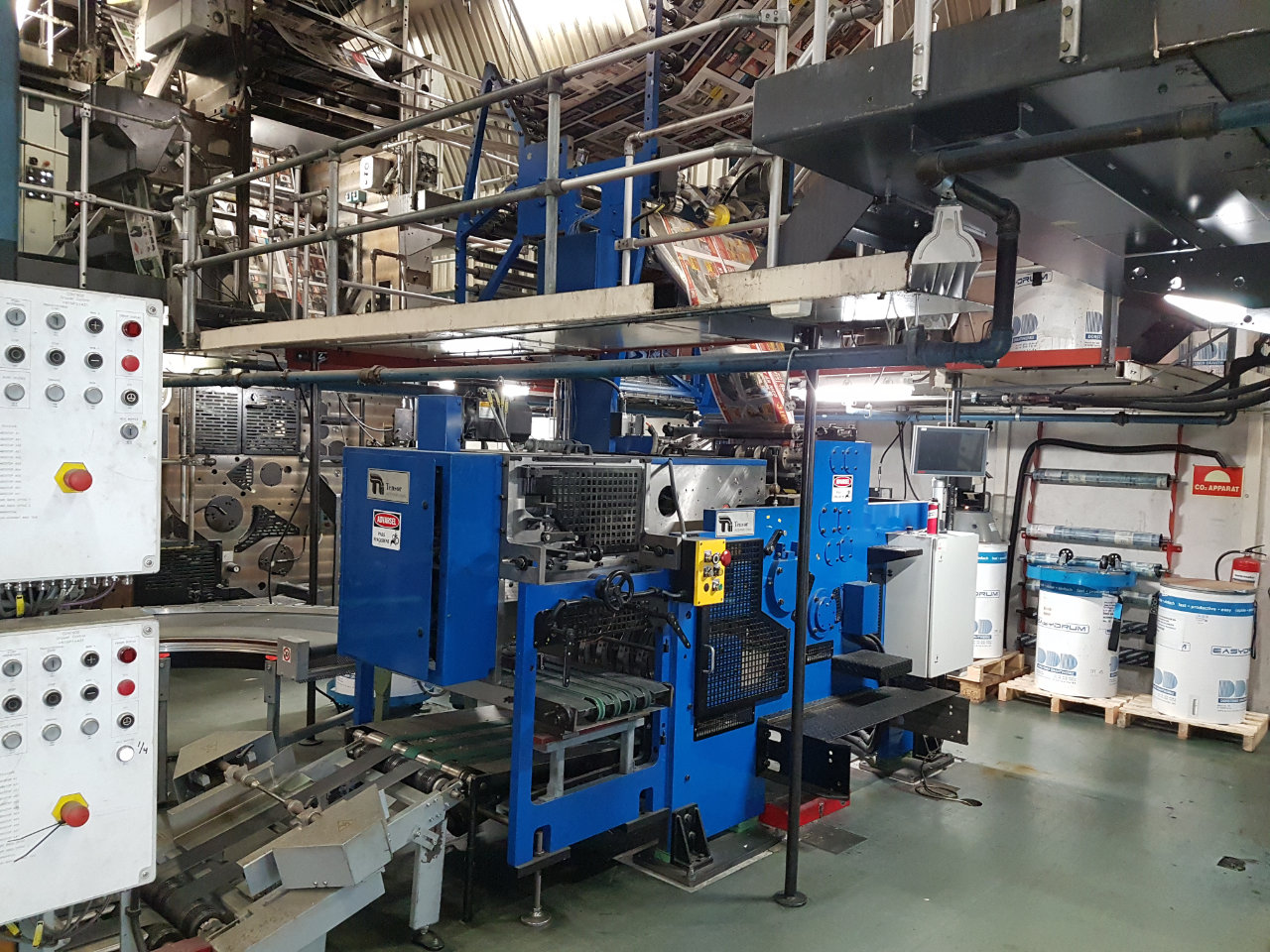

  • Norway 1

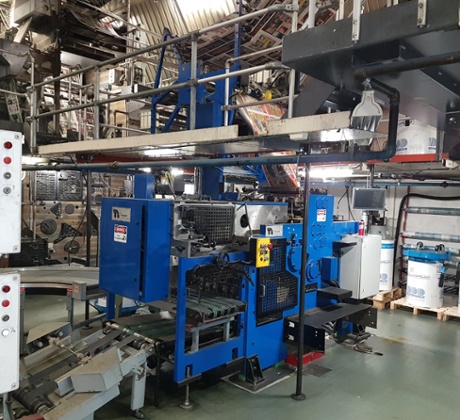

  • Norway 2

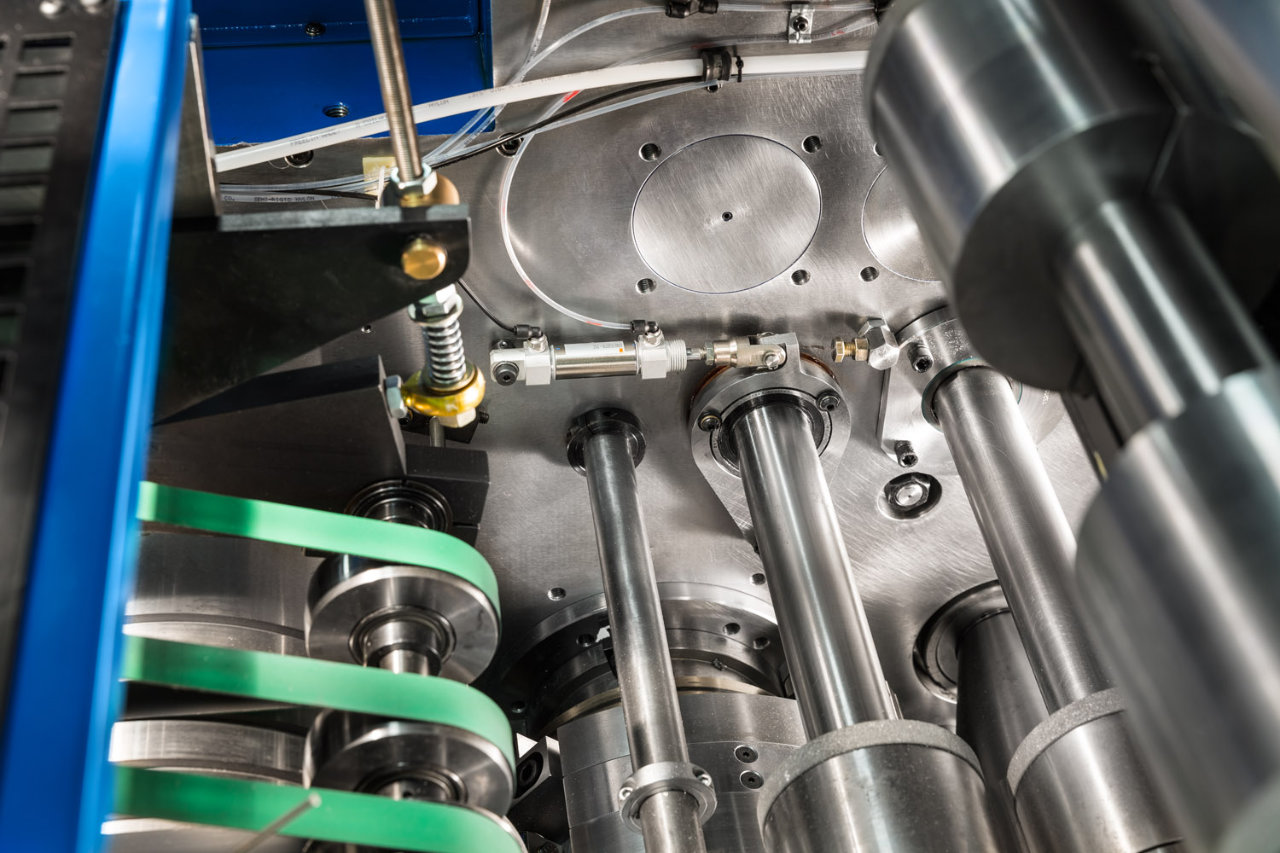

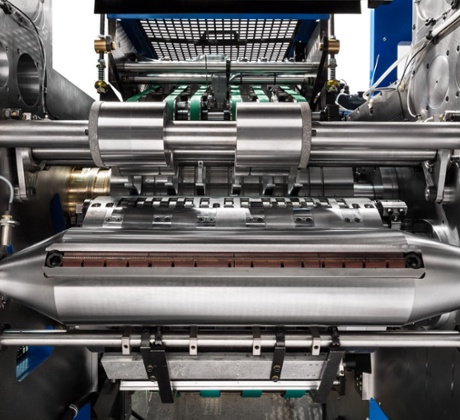

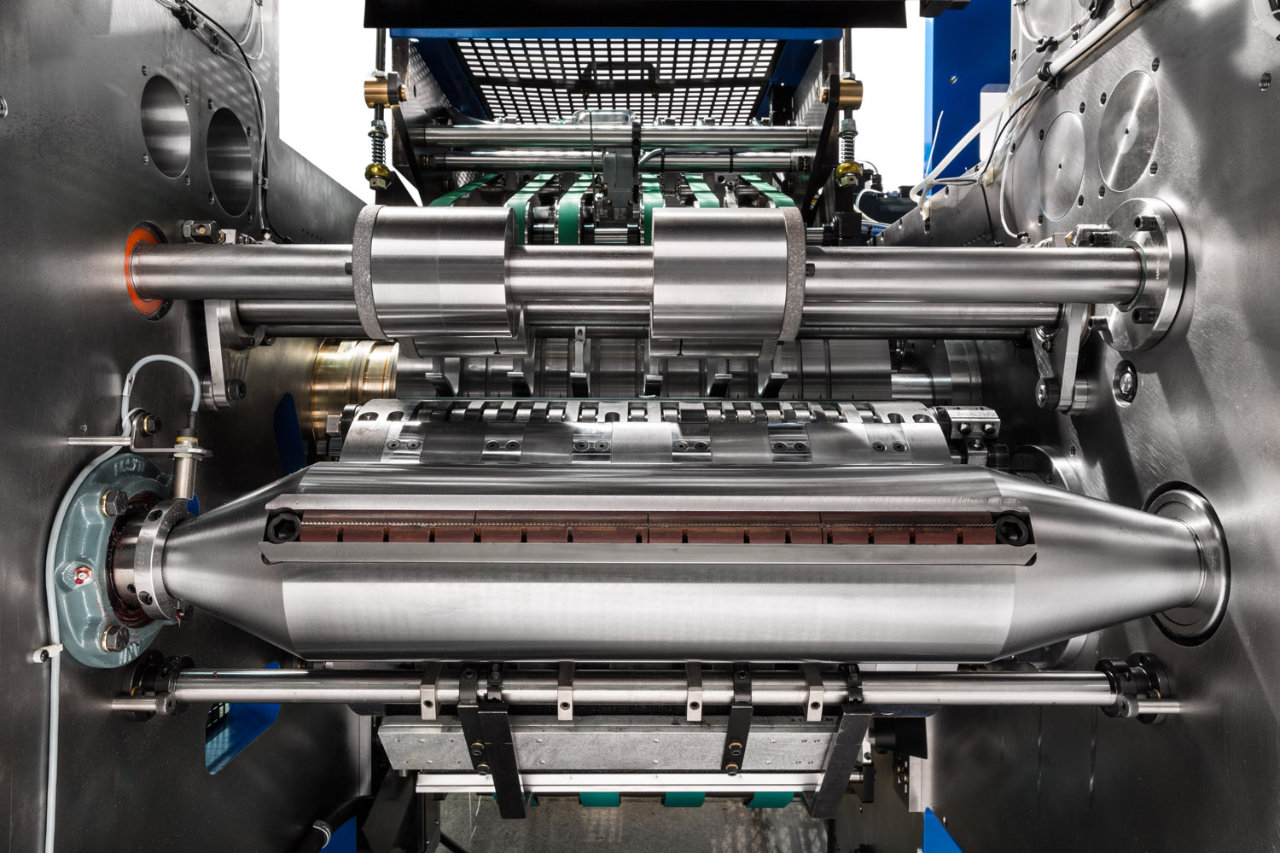

  • Folding Cylinder H-50 Shaftless

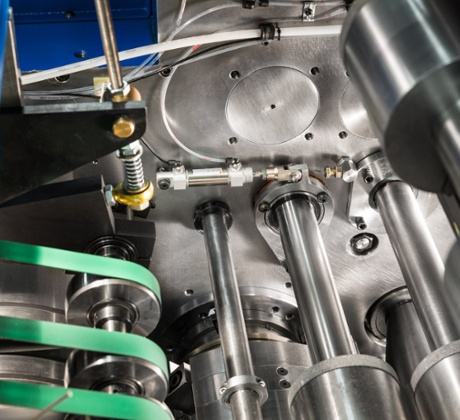

  • Pneumatic Nips Adjustments H-50 Shaftless

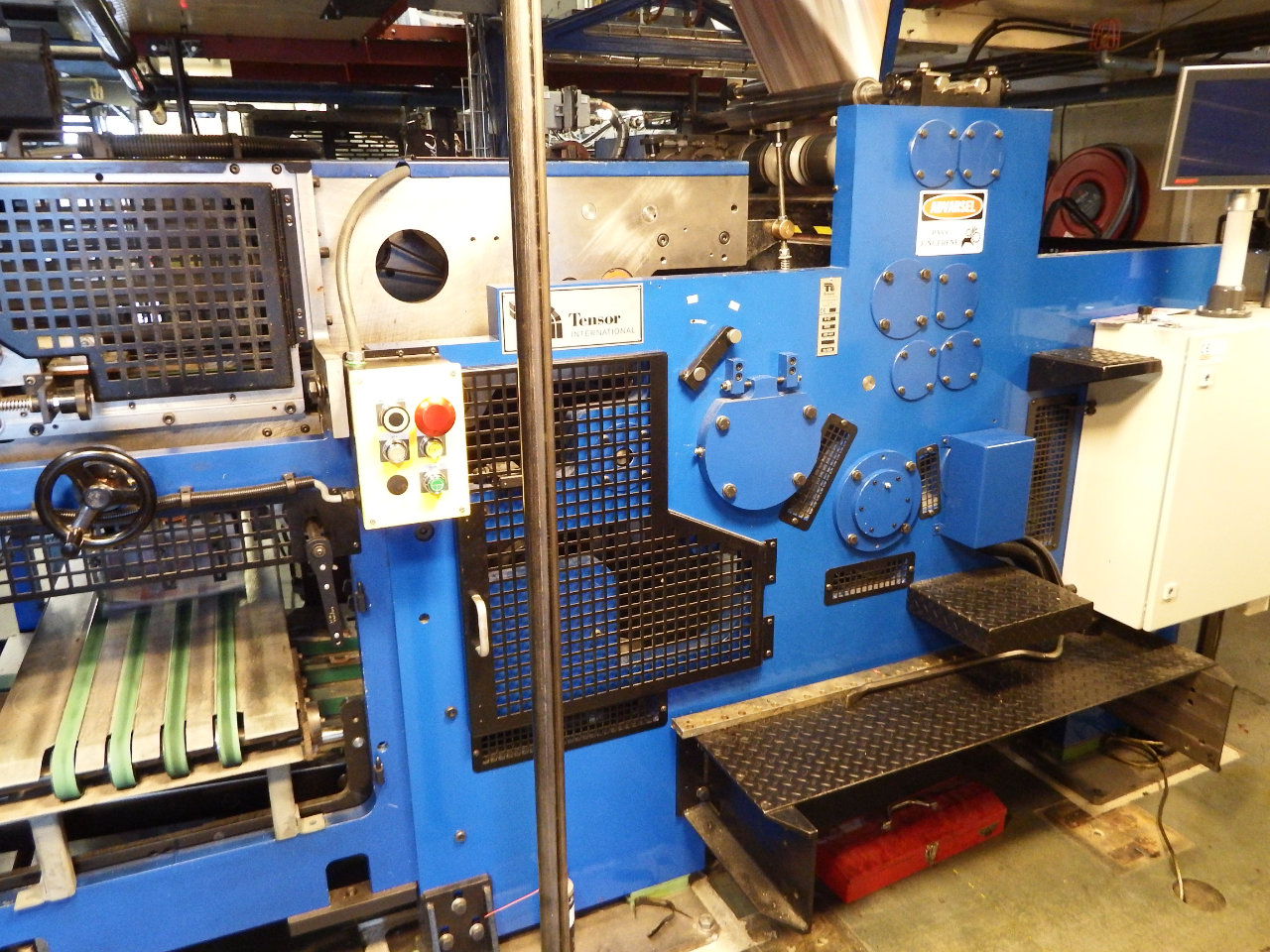

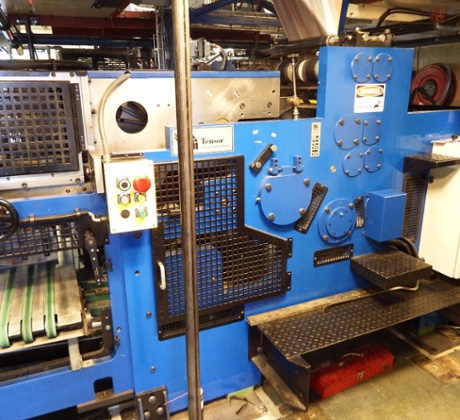

  • H-50 Fully Shaftless

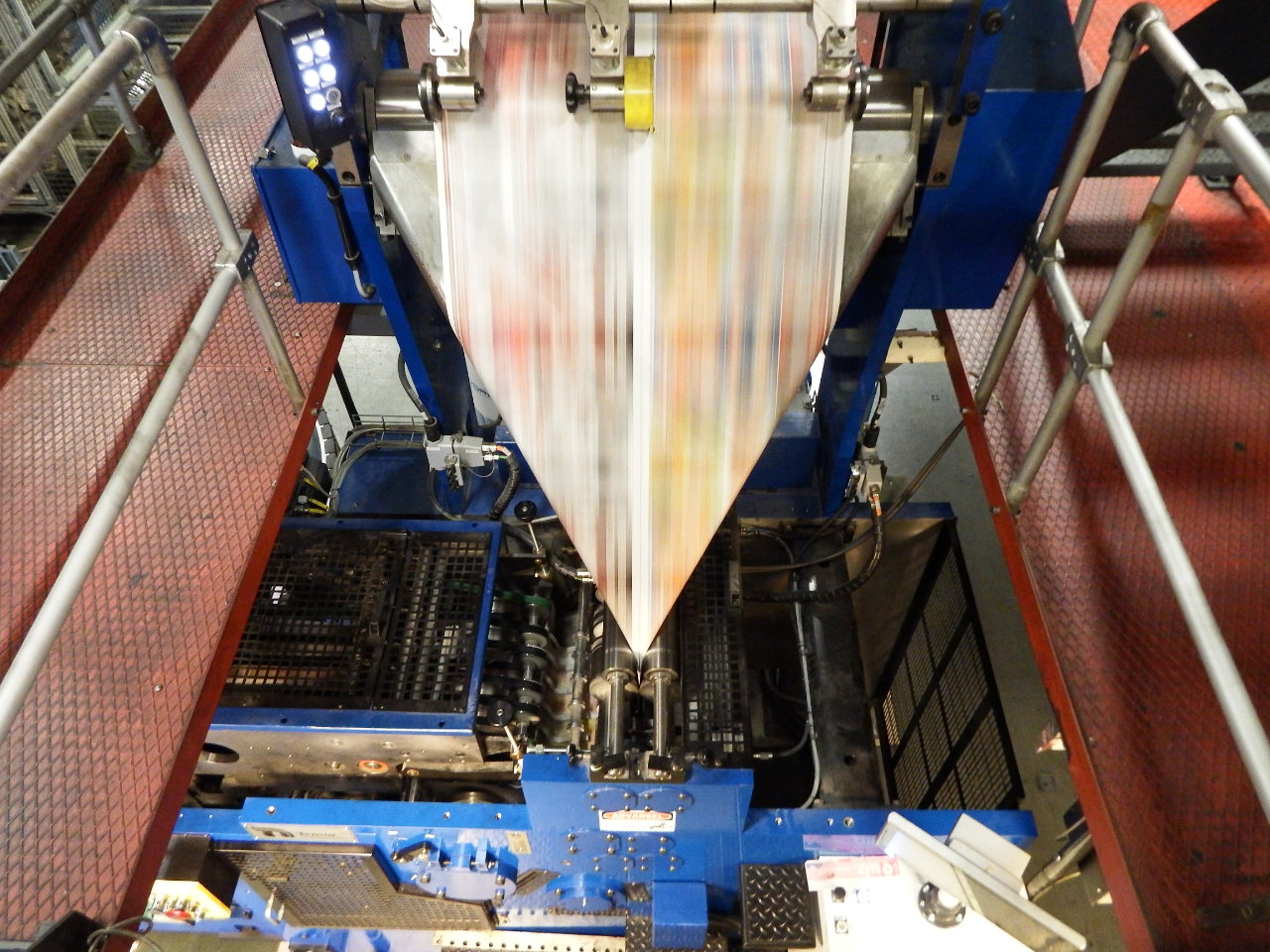

  • Norway 1
