T-400 BE

Easily adapts to run with any single width press

T-400BE

Tensor T-400BE takes print quality to the next level for newspaper and semi-commercial applications. The T-400BE easily adapts to run with any single width press.

High Production

  • Speed of 40,000 IPH (optional upgrade to 45,000 IPH)
  • Rapid make-ready

Cutoff: 19" through 27.6" (483mm through 700mm)

Web Widths: 29" through 40" (737mm through 1016mm)

High Print Quality

  • 100% helical drive design on the gear train virtually eliminates dot distortion
  • Tensor's unique “bearing-in-a-bearing” eccentric design provides optimum dynamic support of the blanket cylinders, reducing print disturbances
  • Full bearer press design for enhanced dot reproduction and the ability to print fine screen work
  • Reel rod type, narrow-gap blanket lock-ups reduce disturbance and maximize image area

Highly Automated Controls

  • State-of-the-art drives and controls provide optimum efficiency with minimal waste
  • Shafted or shaftless drives with integrated logistics for all auxiliary equipment

High Design Standards

  • Tapered journal design on plate cylinders provides improved stiffness for outstanding print and registration control
  • Quick “no tool” plate change design encourages versatility of products

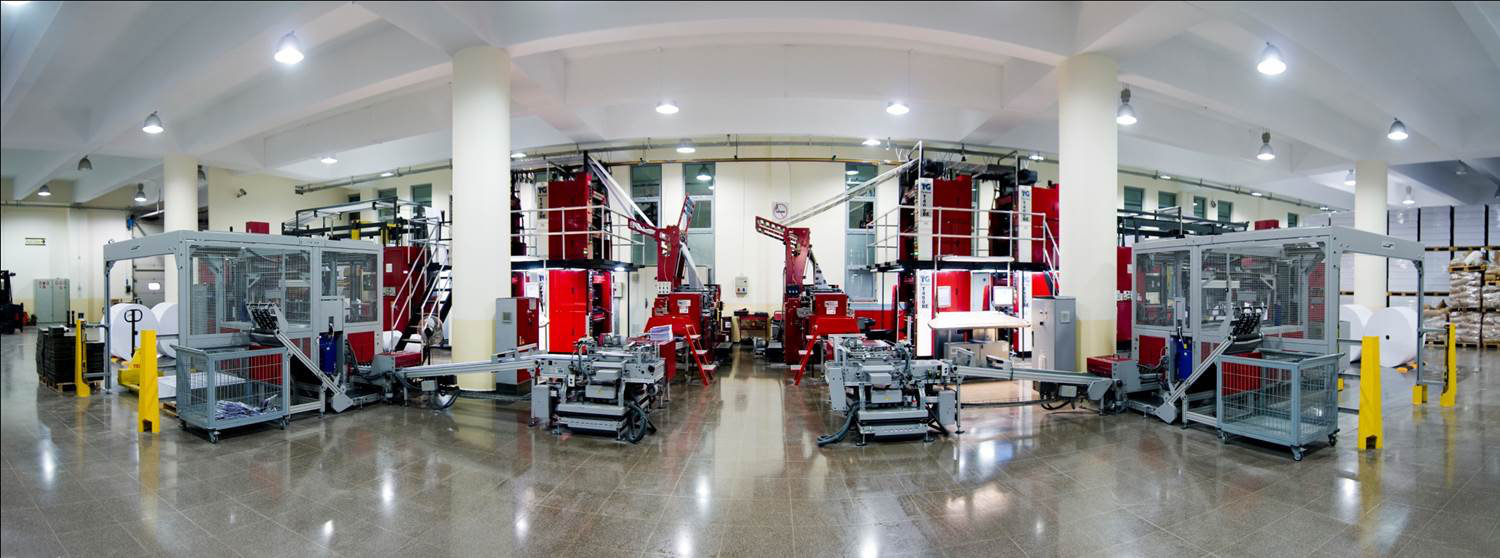

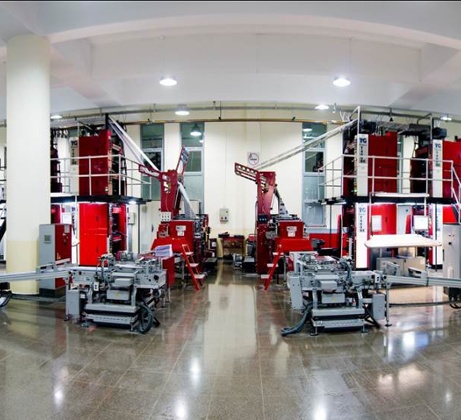

  • Turkey 1
  • Bahrain
  • Vietnam
  • Norway
  • Turkey 2
  • Turkey 3

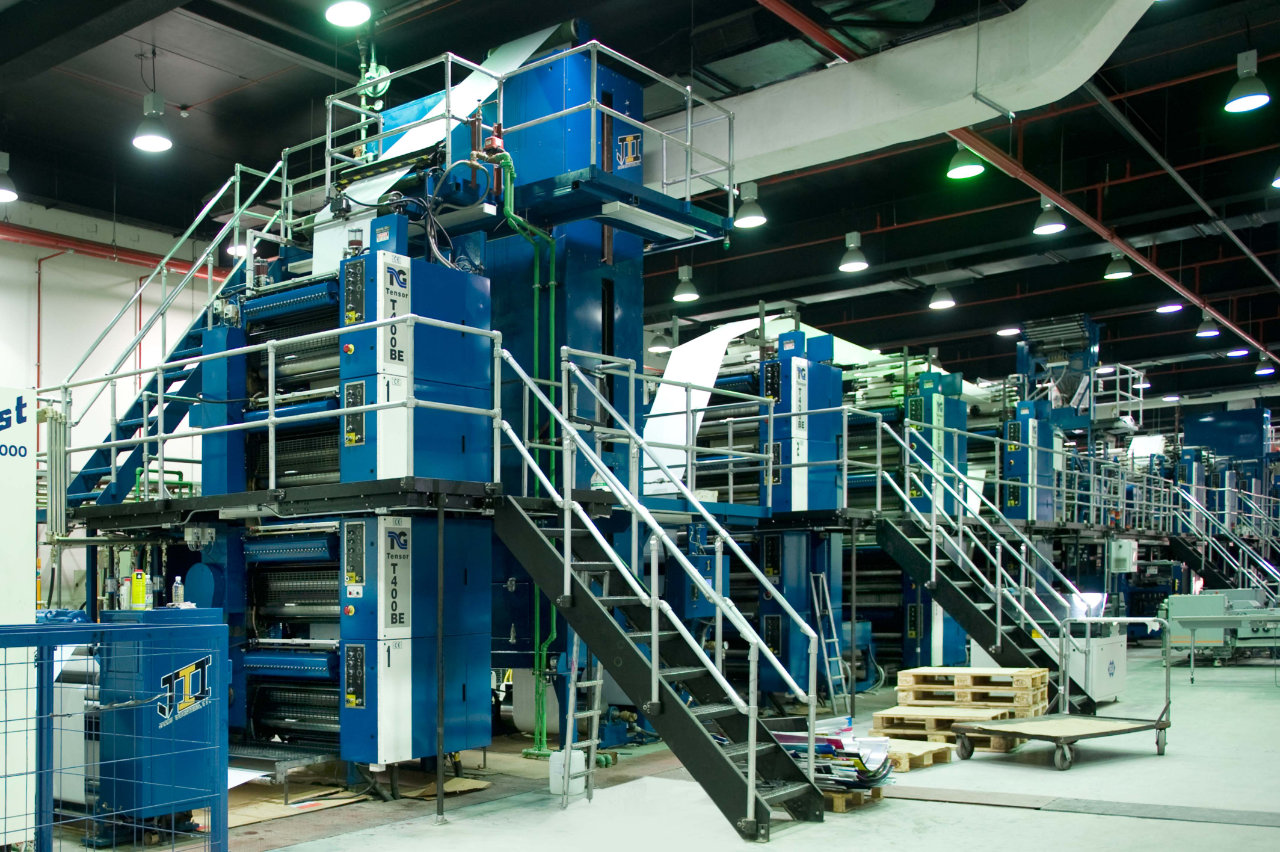

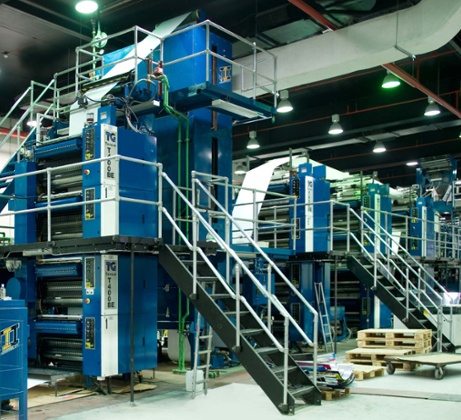

  • Turkey 1

    Turkey



  • Bahrain

    Bahrain

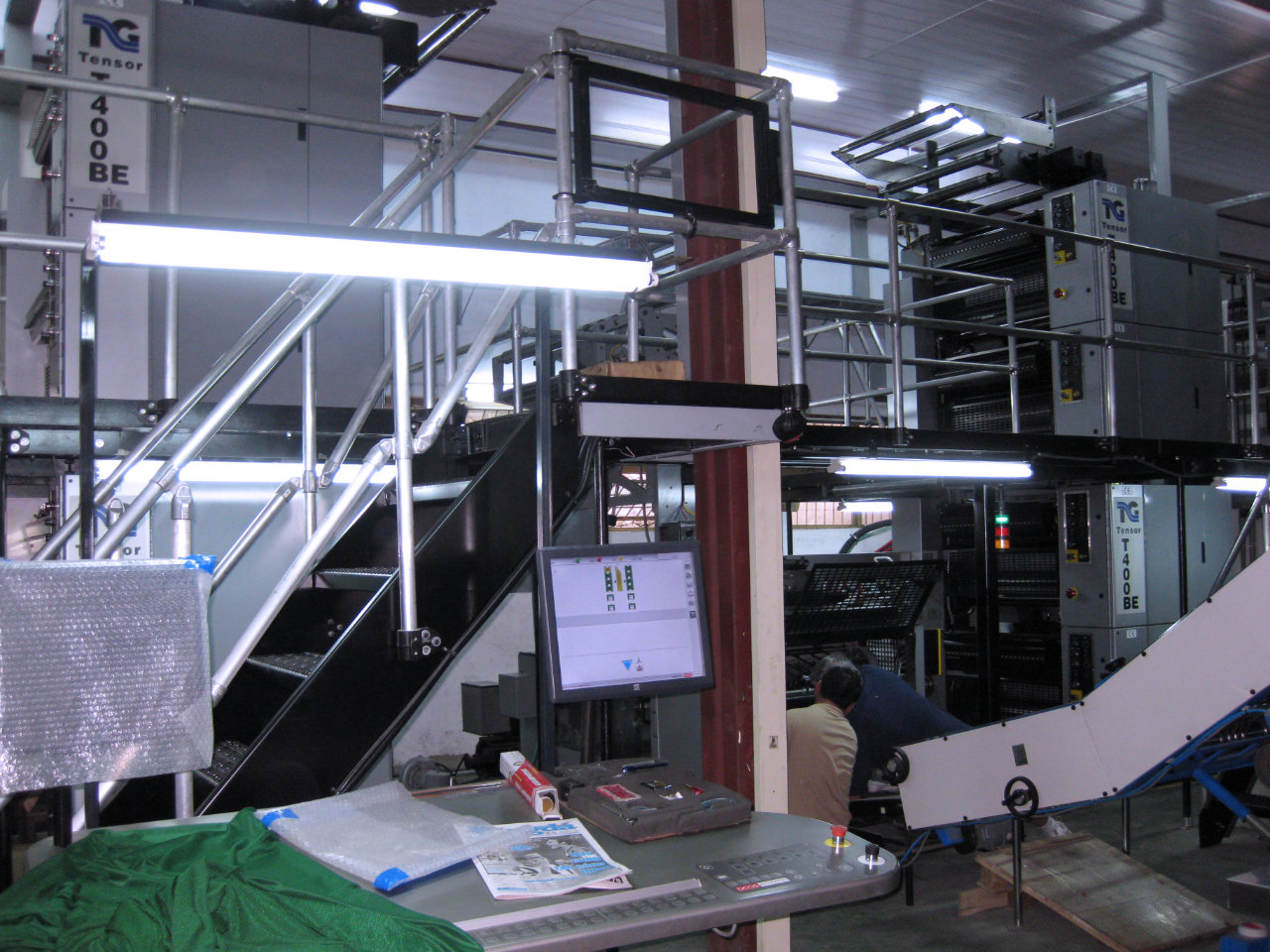

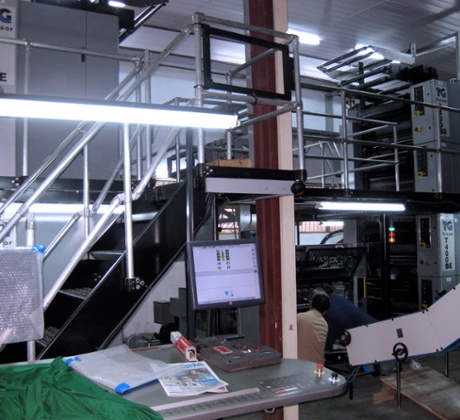

  • Vietnam

    Vietnam

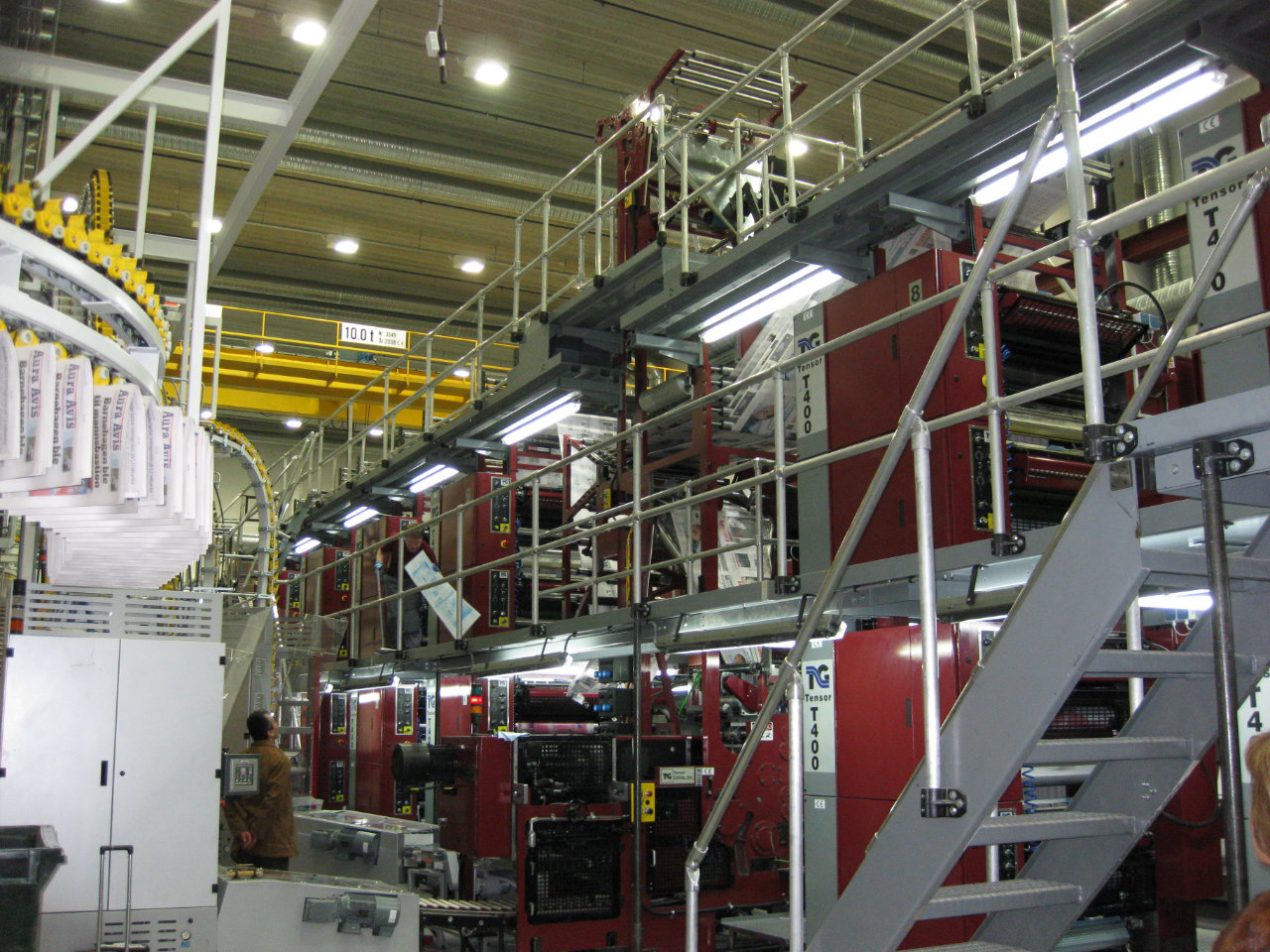

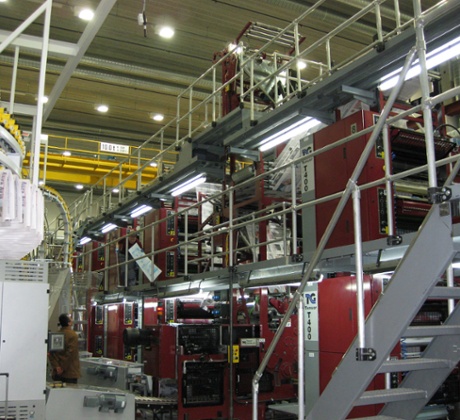

  • Norway

    Norway

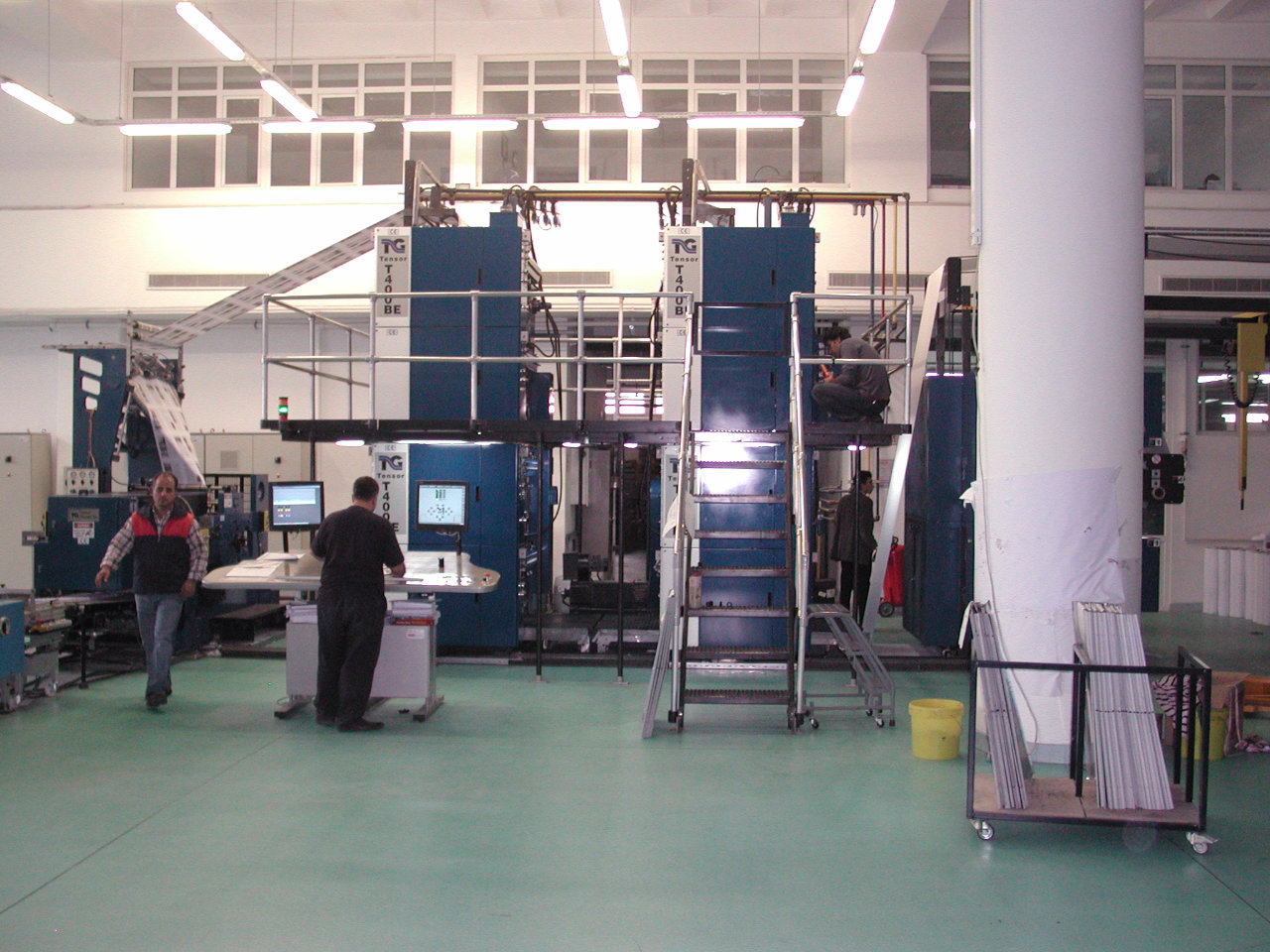

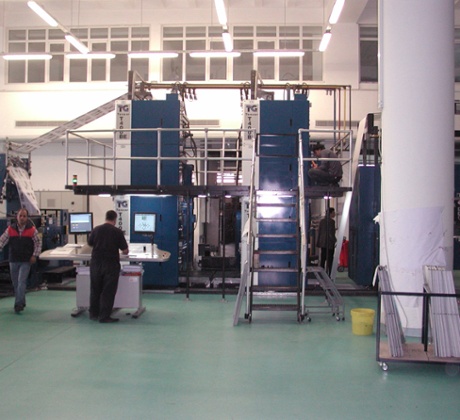

  • Turkey 2

    Turkey



  • Turkey 3

    Turkey




    Data Sheet(s)

T-460 English
English

T-460 Polish
Polish

T-460 Spanish
Spanish
